How to Use Perspection Event Transformers and Field Mapping to Control Data Before Dispatch

How do you create a PII Redactor in Perspection?

To create a PII Redactor, navigate to Pipeline > Transformers, click Add Transformer, select PII Redactor, enter a name, type one dot-notation field path per line in the Fields to Redact textarea, and click Create Transformer. Perspection immediately strips every listed field from events dispatched through any assigned destination.

Step-by-step: Create a PII Redactor

1. Log into the Perspection dashboard and select the workspace requiring PII redaction.

2. Navigate to Pipeline > Transformers in the left sidebar.

3. Click the Add Transformer button in the upper-right corner.

4. In the Add Transformer dialog, enter a descriptive name such as "Redact PII for GA4" or "Strip emails before TikTok."

5. Select PII Redactor from the Type dropdown. The description beneath the dropdown reads: "Remove sensitive fields (email, phone, etc.) before dispatch."

6. In the Fields to Redact textarea, enter one dot-notation field path per line. Common field paths include:

   • user_data.email_hash

   • user_data.phone_hash

   • properties.email

   • properties.phone

   • user_data.first_name

   • user_data.last_name

7. Click Create Transformer. Perspection creates the PII Redactor in an active state.

Assign the PII Redactor to a destination

After creating the PII Redactor, the transformer card appears in the Transformers grid with an "Active" badge and a "Not assigned to any destination" label.

1. Click the Assign button beneath the Destinations section of the transformer card.

2. In the Assign to Destination dialog, select the target destination from the dropdown (e.g., "Google Analytics 4 (ga4)").

3. Click Assign. The destination name appears as a badge on the transformer card.

Repeat the assignment process to apply the same PII Redactor to additional destinations. To remove an assignment, click the X icon on the destination badge.

PII Redaction and data quality

PII Redactors interact directly with data quality rules. When a PII Redactor strips a field that a destination requires for attribution (such as user_data.email_hash for Meta CAPI), the destination receives the event without the stripped field, potentially lowering Event Match Quality scores. Data teams should balance privacy obligations against attribution accuracy by assigning PII Redactors only to destinations where the redacted fields are not required for conversion matching.

PII Redaction and consent enforcement

PII Redactors complement Perspection consent management by providing a technical enforcement layer. Even when consent signals indicate a user has opted out of data sharing, a PII Redactor guarantees that the specified fields never leave Perspection infrastructure for the assigned destinations -- regardless of upstream consent logic failures.

How do you remap event fields before dispatch?

To remap event fields, create a Field Remapper transformer, define source-to-destination mapping pairs using dot-notation paths, assign it to the target destination, and save. Perspection reads values from source paths and writes them to destination paths, translating between platform schemas without modifying the original tracking implementation.

Step-by-step: Create a Field Remapper

1. Navigate to Pipeline > Transformers and click Add Transformer.

2. Enter a name such as "Remap product fields for Meta" or "Translate properties to GA4 schema."

3. Select Field Remapper from the Type dropdown. The description reads: "Rename or restructure fields using dot-notation paths."

4. Click Add Field Mapping to add the first mapping pair.

5. In the left input field, enter the source path (e.g., properties.product_id). In the right input field, enter the destination path (e.g., content_ids).

6. Add additional mapping pairs by clicking Add Field Mapping again. Common mapping pairs include:

7. Click Create Transformer.

8. Assign the Field Remapper to the appropriate destination using the Assign button.

When to use Field Remapper versus per-destination event mapping

Perspection offers two mechanisms for renaming fields: Field Remapper transformers and per-destination event mapping (covered in section 5 of the current guide). The choice depends on the use case:

• Field Remapper transformers operate at the transformer level, execute in a defined order alongside PII Redactors and Event Filters, and can be reused across multiple destinations. Field Remapper transformers are best for standardizing property names across several destinations simultaneously.

• Per-destination event mapping operates within the destination configuration, supports both event name translation and property remapping, and provides a Visual rule builder alongside a JSON editor. Per-destination event mapping is best for destination-specific translations that differ from destination to destination.

Editing and deleting Field Remapper mapping pairs

To modify an existing Field Remapper, click the Edit button on the transformer card. The Edit Transformer dialog loads the current mapping pairs, allowing teams to update source paths, destination paths, or remove individual pairs using the trash icon. Click Save Changes to persist the updates. Perspection applies the updated mappings to the next dispatched event.

How do you filter events using allow and deny lists?

Create an Event Filter transformer, populate the Allow List with permitted event names (leave empty to allow all), add event names or glob patterns (e.g., debug_*) to the Deny List, and assign to the target destination. Perspection evaluates the Deny List after the Allow List, so denied names are blocked even if they match an allow pattern.

Step-by-step: Create an Event Filter

1. Navigate to Pipeline > Transformers and click Add Transformer.

2. Enter a name such as "Block debug events from Meta" or "Only send purchases to TikTok."

3. Select Event Filter from the Type dropdown. The description reads: "Allow or deny events by name pattern before dispatch."

4. Configure the Allow List and Deny List:

Allow List configuration:

• Enter one event name per line in the Allow List textarea.

• When the Allow List contains entries, only events matching those entries pass through to the destination. All other events are blocked.

• When the Allow List is empty, all events pass through (subject to Deny List rules).

• Example Allow List for a purchase-only destination:

  purchase
  add_to_cart
  initiate_checkout

  purchase
  add_to_cart
  initiate_checkout

  purchase
  add_to_cart
  initiate_checkout

Deny List configuration:

• Enter one event name or glob pattern per line in the Deny List textarea.

• Events matching any Deny List entry are blocked regardless of Allow List configuration.

• Glob patterns use the * wildcard to match any sequence of characters.

• Example Deny List for blocking internal and debug events:

  debug_*
  internal_test
  staging_*
  heartbeat

  debug_*
  internal_test
  staging_*
  heartbeat

  debug_*
  internal_test
  staging_*
  heartbeat

5. Click Create Transformer.

6. Assign the Event Filter to the target destination.

Glob pattern reference

Event Filter glob patterns follow standard glob syntax:

Common Event Filter configurations

Configuration 1: Purchase-funnel only for Meta CAPI

• Allow List: page_view, view_content, add_to_cart, initiate_checkout, add_payment_info, purchase

• Deny List: (empty)

• Assigned to: Meta (Facebook) destination

Configuration 2: Block debug and staging events globally

• Allow List: (empty -- all events pass)

• Deny List: debug_*, staging_*, internal_*, test_*

• Assigned to: All production destinations

Configuration 3: Conversion events only for TikTok

• Allow List: purchase, add_to_cart, complete_registration

• Deny List: (empty)

• Assigned to: TikTok Events API destination

Enabling and disabling Event Filters without deletion

Each transformer card includes an Active/Inactive toggle switch. Toggling the switch to inactive disables the Event Filter without deleting the Event Filter or removing destination assignments. Disabling an Event Filter is useful for temporarily allowing all events through during debugging sessions without losing the carefully configured allow and deny lists.

How do you configure per-destination event mapping in Perspection?

Per-destination event mapping uses the MappingConfigEditor, accessible within each destination's configuration card under the Event Mapping section. It offers two modes: Visual mode provides a point-and-click rule builder for mapping event names and properties, while JSON mode exposes the raw configuration schema for control over defaults, ignore_events arrays, and nested data mappings.

Accessing the MappingConfigEditor

1. Navigate to Connectors > Destinations in the Perspection dashboard.

2. Locate the destination requiring event mapping (e.g., Meta CAPI, Google Ads, or TikTok Events API).

3. On the destination configuration card, click the Event Mapping collapsible section to expand the MappingConfigEditor.

4. The MappingConfigEditor displays a mode toggle with two options: Visual and JSON.

Visual mode: The rule builder

Visual mode provides a structured interface for creating event mapping rules without writing JSON. Each rule defines a source-to-destination event translation:

Adding a mapping rule:

1. Click Add Mapping Rule (or Add Rule if rules already exist).

2. In the left input field, enter the source event name as the Perspection SDK sends the source event name (e.g., product_viewed).

3. In the right input field, enter the destination event name as the advertising platform expects the destination event name (e.g., view_item for Google Ads or ViewContent for Meta CAPI).

Adding property mappings within a rule:

1. Click Add Property beneath the event name mapping.

2. In the left input field, enter the source property path using dot-notation (e.g., properties.price).

3. In the right input field, enter the destination property key (e.g., value).

4. Add additional property mappings by clicking Add Property again.

Example Visual mode configuration for Meta CAPI:

JSON mode: Advanced configuration

JSON mode exposes the complete Perspection mapping schema, providing access to three top-level configuration keys:

{
  "mappings": {
    "product_viewed": {
      "name": "ViewContent",
      "data": {
        "map": {
          "value": { "key": "properties.price" },
          "content_ids": { "key": "properties.product_id" },
          "content_name": { "key": "properties.product_name" }
        }
      }
    },
    "added_to_cart": {
      "name": "AddToCart",
      "data": {
        "map": {
          "value": { "key": "properties.price" },
          "currency": { "key": "properties.currency_code" }
        }
      }
    },
    "checkout_started": {
      "ignore": true
    }
  },
  "defaults": {},
  "ignore_events": ["debug_click", "internal_test"]
}

{
  "mappings": {
    "product_viewed": {
      "name": "ViewContent",
      "data": {
        "map": {
          "value": { "key": "properties.price" },
          "content_ids": { "key": "properties.product_id" },
          "content_name": { "key": "properties.product_name" }
        }
      }
    },
    "added_to_cart": {
      "name": "AddToCart",
      "data": {
        "map": {
          "value": { "key": "properties.price" },
          "currency": { "key": "properties.currency_code" }
        }
      }
    },
    "checkout_started": {
      "ignore": true
    }
  },
  "defaults": {},
  "ignore_events": ["debug_click", "internal_test"]
}

{
  "mappings": {
    "product_viewed": {
      "name": "ViewContent",
      "data": {
        "map": {
          "value": { "key": "properties.price" },
          "content_ids": { "key": "properties.product_id" },
          "content_name": { "key": "properties.product_name" }
        }
      }
    },
    "added_to_cart": {
      "name": "AddToCart",
      "data": {
        "map": {
          "value": { "key": "properties.price" },
          "currency": { "key": "properties.currency_code" }
        }
      }
    },
    "checkout_started": {
      "ignore": true
    }
  },
  "defaults": {},
  "ignore_events": ["debug_click", "internal_test"]
}

Schema reference:

1. mappings -- An object where each key is a source event name. Each source event name maps to an object containing:

   • name (string, optional): The destination event name. When name is omitted, the source event name passes through unchanged.

   • ignore (boolean, optional): When ignore is set to true, Perspection drops the event entirely for the assigned destination.

   • data.map (object, optional): An object where each key is a destination property name and each value is an object containing a key field specifying the dot-notation source path.

2. defaults (object, optional) -- Default values applied to all events. The defaults object is preserved in Visual mode but only editable in JSON mode.

3. ignore_events (array, optional) -- An array of event names to ignore globally for the assigned destination. The ignore_events array is preserved in Visual mode but only editable in JSON mode.

Switching between Visual and JSON modes

The MappingConfigEditor supports bidirectional mode switching:

• Visual to JSON: Clicking the JSON tab serializes the current Visual rules into formatted JSON, including any preserved defaults and ignore_events values from the original configuration.

• JSON to Visual: Clicking the Visual tab parses the JSON and populates the rule builder. When the JSON contains syntax errors, the MappingConfigEditor displays an error message ("Invalid JSON -- cannot switch to visual mode. Please fix your JSON first.") and blocks the mode switch.

Saving event mapping configuration

Click the Save Mapping button to persist the event mapping configuration. Perspection validates the configuration and applies the mapping rules to the next dispatched event. When the save succeeds, a confirmation toast appears: "Mapping configuration saved."

Methodology

All event transformer configuration options and field mapping capabilities in this guide were verified against the Perspection production dashboard as of February 2026.

"The most common mistake teams make is applying PII Redactors too broadly. Stripping user_data.email_hash before sending events to Meta CAPI drops the Event Match Quality score from 80-100 down to 30-40, because hashed email is Meta's highest-weight matching parameter. Instead, create separate PII Redactors for analytics destinations like Google Analytics 4 where hashed PII provides no attribution value, and leave the hashed fields intact for advertising platforms that use the hashed fields for conversion matching."

Additional best practices:

1. Name transformers descriptively -- Use names like "Redact PII for GA4" or "Block debug events from Meta" rather than generic names like "Transformer 1." Descriptive names prevent confusion when managing 5-10 transformers across multiple destinations.

2. Test with the Event Filter inactive toggle -- Before deploying a restrictive Event Filter allow list, disable the Event Filter temporarily and verify that expected events reach the destination. Re-enable the Event Filter only after confirming the correct events appear in the destination platform's event manager.

3. Use JSON mode for ignore_events -- The ignore_events array in the event mapping configuration provides a destination-level event blocklist that persists independently of Event Filter transformers. Use ignore_events for permanent blocks (like debug_click) and Event Filter transformers for configurable, toggle-able blocks.

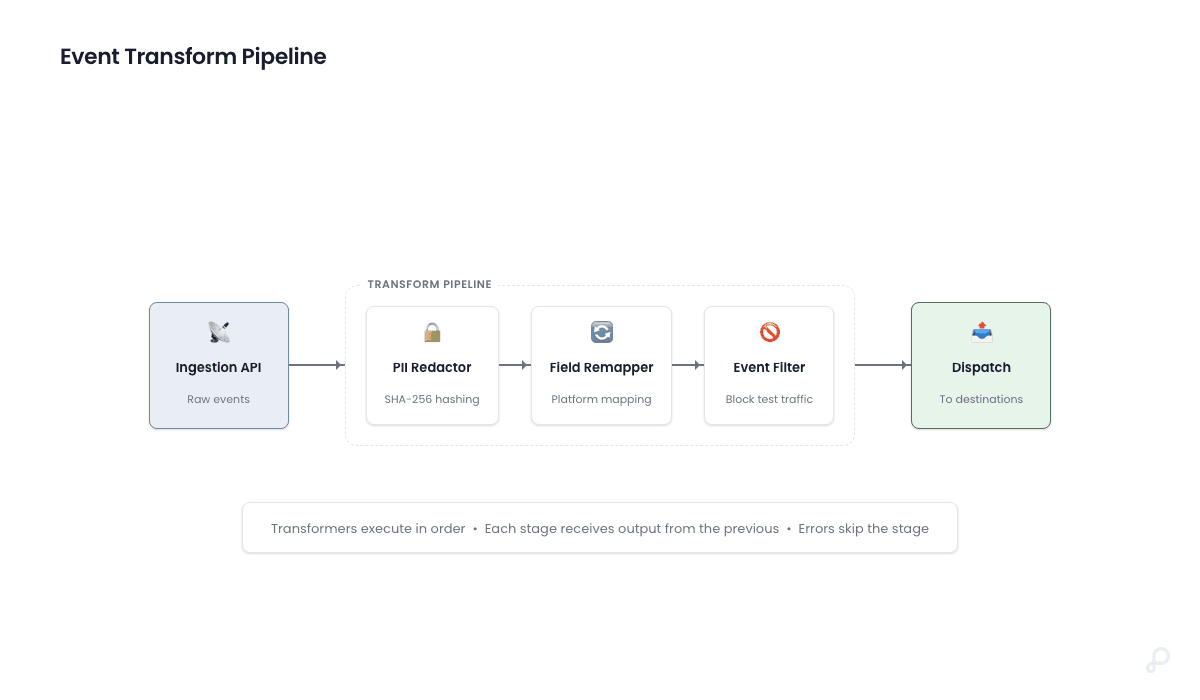

4. Chain transformers in logical order -- Place PII Redactors first (lowest execution_order), Field Remappers second, and Event Filters last. PII Redactors should strip sensitive data before Field Remappers rename the remaining fields, and Event Filters should evaluate events after all field transformations complete.

5. Audit transformer assignments quarterly -- When adding new destinations, review existing transformer assignments to determine whether the same PII Redactors, Field Remappers, or Event Filters should apply to the new destination. Unassigned transformers provide no protection.

Sources and References

1. Perspection Help Center, https://perspection.app/library

2. Perspection Product Guide -- Data Quality Contracts, /library/data-quality-contracts-guide

3. Perspection Product Guide -- Consent Enforcement, /library/consent-enforcement-compliance-guide

4. Perspection Product Guide -- Connect Meta CAPI, /library/connect-meta-conversions-api-guide

5. GDPR Article 25 (Data Protection by Design and by Default) -- Legal basis for PII redaction at the infrastructure level before data leaves the data processor's environment.

6. IAB Transparency & Consent Framework v2.2 -- Industry standard for consent signal propagation that Perspection consent management implements alongside transformer-based PII redaction.
