Connect Google Analytics 4

How do you connect Perspection to Google Analytics 4?

Connecting Perspection to Google Analytics 4 requires two credentials: the Measurement ID (format G-XXXXXXXXXX, from GA4 Admin under Data Streams) and a Measurement Protocol API Secret (generated in GA4 Admin under Data Streams, then Measurement Protocol API Secrets). Setup takes under 2 minutes and Perspection validates the connection by sending a test page_view event to the GA4 debug endpoint.

Step-by-step setup

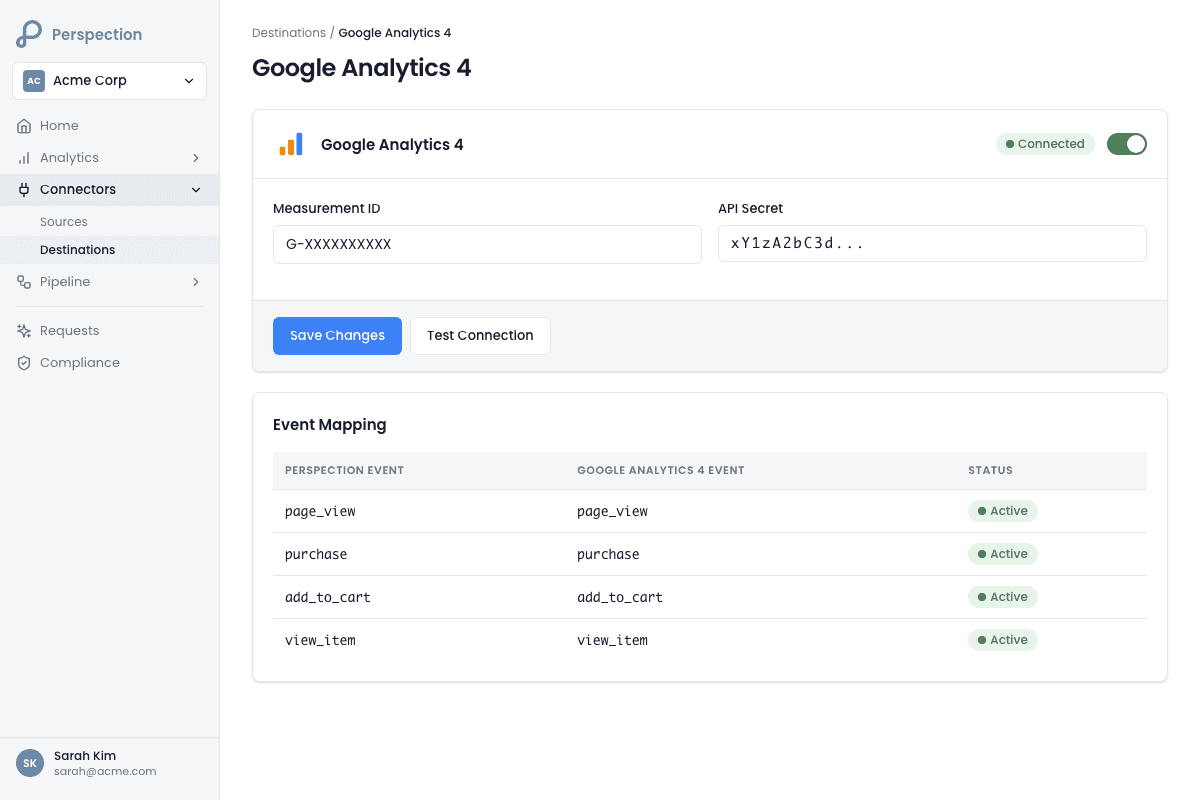

1. Open the Perspection dashboard and navigate to Connectors in the sidebar, then select Destinations.

2. Locate the Google Analytics 4 card in the destination list. The card displays the label "Google Analytics 4" with the subtitle "Measurement Protocol." Click the card to expand the configuration form.

3. Enter the Measurement ID:

   • Open Google Analytics in a separate tab.

   • Navigate to Admin (gear icon in the bottom-left corner).

   • Under the Property column, click Data Streams.

   • Select the web data stream for the website.

   • Copy the Measurement ID displayed at the top of the stream details (format: G-XXXXXXXXXX).

   • Paste the Measurement ID into the "Measurement ID" field in Perspection.

4. Generate and enter the API Secret:

   • In the same GA4 Data Stream detail page, scroll down to Events and find Measurement Protocol API Secrets (or navigate to Admin > Data Streams > select stream > Measurement Protocol API Secrets).

   • Click Create to generate a new API secret.

   • Enter a nickname (e.g., "Perspection Server-Side") and click Create.

   • Copy the generated Secret value.

   • Paste the API Secret into the "API Secret" field in Perspection.

5. Click Save to store the GA4 destination configuration.

6. Click Test to validate the connection. Perspection sends a test page_view event to the GA4 debug endpoint (/debug/mp/collect) and checks the response for validationMessages. A successful test confirms the Measurement ID and API Secret are valid.

7. Toggle the destination to Live using the switch in the card header. Perspection begins dispatching events to the GA4 production endpoint.

The GA4 connector uses the password field type for the API Secret, ensuring the value is masked in the Perspection dashboard after entry.

How does Perspection maintain GA4 session continuity?

Perspection preserves the GA4 client_id using a 3-tier strategy: first, reading the _ga cookie from the browser SDK; second, deriving a stable client_id by hashing the visitor's identity_id or anonymous_id; third, generating a random client_id as a last resort. The _ga cookie path scores highest because GA4 uses client_id to stitch server-side events into the session initiated by gtag.js.

The client_id resolution hierarchy

The GA4 client_id is a dot-separated pair of numbers (e.g., 1234567890.1700000000) that GA4 uses to identify a unique browser instance. When gtag.js runs on a website, gtag.js creates a _ga cookie containing the client_id. Perspection's browser SDK captures the _ga cookie value and includes the _ga cookie value with every tracked event.

Perspection's GA4 connector resolves the client_id in the following priority order:

1. Native _ga cookie -- If the event payload contains a _ga field (captured from the gtag.js cookie or Perspection's own _persp_ga cookie), the connector extracts the last two numeric segments. For a cookie value like GA1.1.1234567890.1700000000, the connector returns 1234567890.1700000000. Events with native _ga cookies receive a client_id quality score of 100/100.

2. Derived from identity -- If no _ga cookie is present, the connector hashes the identity_id or anonymous_id into a stable 10-digit number paired with the event timestamp. The derived client_id ensures the same visitor always maps to the same GA4 user, but GA4 cannot stitch derived client_ids to existing gtag.js sessions. Events with derived client_ids receive a quality score of 60/100.

3. Random fallback -- If neither a _ga cookie nor an identity identifier exists (which should not occur with properly installed SDK events), the connector generates a random 10-digit number with the current Unix timestamp. Random client_ids create orphaned sessions in GA4.

Session ID forwarding

Beyond the client_id, Perspection forwards the session_id parameter to GA4 when available. The connector handles multiple session ID formats:

• GA4-native ga4_session_id -- Passed directly as a string.

• Perspection session format (sess_<timestamp_ms>_<random>) -- The connector extracts the timestamp portion and converts the timestamp from milliseconds to seconds.

• Other formats -- Passed as-is.

The session_id enables GA4 to attribute server-side events to the correct session, which is critical for session-scoped metrics like "sessions with conversions" and "engagement rate."

What GA4 event parameters does Perspection send?

Perspection maps 26+ event types to GA4 recommended events and enriches each with up to 25 custom parameters: client_id, user_id, timestamp_micros, page data (page_location, page_title, page_referrer), UTM parameters (source, medium, campaign), e-commerce fields (items, value, currency, transaction_id), and user properties for audience building (membership_tier, customer_type, lifetime_value_tier).

Event name mapping

Perspection automatically maps canonical event names to GA4 recommended events. The full mapping includes:

Events not in the mapping table are sanitized into valid GA4 custom event names: lowercased, non-alphanumeric characters replaced with underscores, and truncated to 40 characters. Events with reserved prefixes (firebase_, ga_, google_) are automatically prefixed with psp_.

E-commerce parameter enrichment

For purchase and refund events, Perspection sends the full GA4 e-commerce schema:

• value -- Total order value, parsed from value, total_price, or amount fields.

• currency -- ISO 4217 currency code (e.g., USD, SGD, EUR).

• transaction_id -- Mapped from order_id, transaction_id, or order_number.

• items -- Array of up to 200 items, each containing item_id, item_name, price, quantity, item_category, and item_brand.

• shipping and tax -- When available from the source event.

• coupon -- Extracted from discount_codes when present.

User properties

Perspection builds GA4 user-scoped properties for audience segmentation. The connector sends up to 25 user properties with string values capped at 36 characters:

• membership_tier / account_type / customer_type

• country / region / language

• signup_method

• lifetime_orders / lifetime_value_tier

User properties appear in GA4 under Configure > User Properties and can be used for audience definitions and exploration report segments.

How does Perspection handle GA4 Consent Mode v2?

Perspection sends 2 consent signals in the Measurement Protocol payload: ad_user_data and ad_personalization, each set to GRANTED or DENIED based on the visitor's consent state. When ad_personalization or ad_user_data is denied, Perspection also sets non_personalized_ads: true. GA4 uses consent signals to apply data thresholds, enable conversion modeling for cookieless pings, and restrict remarketing audience membership for non-consenting visitors.

Consent signal flow

Perspection's consent enforcement pipeline captures visitor consent preferences through the browser SDK and propagates consent state through the event processing pipeline to every destination connector. For the GA4 connector specifically:

1. Browser SDK captures consent -- The Perspection SDK collects consent signals for 4 categories: ad_storage, analytics_storage, ad_user_data, and ad_personalization. Consent signals are attached to every event as top-level fields.

2. Processing worker enriches events -- The processing worker preserves consent fields through the enrichment pipeline without modification.

3. GA4 connector maps consent -- The GA4 connector reads ad_user_data and ad_personalization from the event payload and maps the values to GA4's Measurement Protocol consent format (GRANTED or DENIED).

4. Non-personalized ads flag -- When either ad_user_data or ad_personalization is denied, the connector sets non_personalized_ads: true on the payload, instructing GA4 to exclude the event from remarketing audiences and personalized advertising.

What GA4 does with consent signals

• analytics_storage: denied -- GA4 collects cookieless pings (no _ga cookie is set). GA4 uses these pings for behavioral and conversion modeling to fill reporting gaps.

• ad_storage: denied -- GA4 does not store advertising cookies. Remarketing lists and Google Ads audience exports exclude these visitors.

• ad_user_data: DENIED -- GA4 does not send user-level data to Google advertising products.

• ad_personalization: DENIED -- GA4 does not use the event data for ad personalization or remarketing.

For a detailed guide on configuring consent enforcement across all destinations, see Consent Enforcement. For analytics reporting on consent rates, see Analytics Overview.

How do you verify GA4 server-side events?

Verify GA4 server-side events using 3 tools: GA4 Real-Time reports to confirm events arrive within 30 seconds, GA4 DebugView for parameter inspection, and the Perspection Sent Data tab to match event counts. The production endpoint returns 204 for every request regardless of validity, so checking GA4's reporting interface is required.

Verification workflow

1. Trigger a test event -- Open the tracked website in a browser and perform an action (e.g., a page view or add-to-cart). Ensure the Perspection browser SDK is installed and the workspace is receiving events.

2. Check Perspection dispatch status -- In the Perspection dashboard, navigate to Connectors > Destinations and verify the Google Analytics 4 card shows a "Live" status badge (green). If the destination was recently saved, Perspection sends a validation request to the GA4 debug endpoint and reports the result in the card.

3. Check GA4 Real-Time reports:

   • Open Google Analytics.

   • Navigate to Reports > Real-time.

   • Look for incoming events from Perspection. Server-side events appear in Real-Time reports within 5-30 seconds of dispatch.

   • Verify event names match expected GA4 recommended events (e.g., page_view, purchase, add_to_cart).

4. Use GA4 DebugView for parameter inspection:

   • In GA4, navigate to Admin > Data Display > DebugView.

   • DebugView shows individual events with all parameters. Look for page_location, page_title, session_id, value, and items parameters.

   • Note: DebugView only displays events sent with debug_mode: true in the event parameters. To enable debug mode for Perspection events, contact Perspection support to activate the debug_mode configuration flag on the GA4 connector.

5. Compare event counts -- After 24-48 hours of live dispatch, compare event totals in the Perspection analytics dashboard against GA4's standard reports under Reports > Engagement > Events. Minor discrepancies (1-3%) are normal due to GA4's data processing pipeline and sampling thresholds.

Quality scoring

Perspection's GA4 connector calculates a quality score (0-100) for every dispatched event across 4 weighted factors:

Events scoring below 60 generate a warning in Perspection's dispatch logs with specific recommendations for improvement, such as "Capture _ga cookie from gtag.js for session stitching" or "Include items for product-level attribution."

Skipped events

Perspection's GA4 connector intentionally skips 16 event types that are internal-only or reserved by GA4:

• Internal events: identify, perspection_consent_update, javascript_error, page_hidden, page_visible, page_exit, experiment_exposure

• GA4 reserved events: session_start, first_visit, user_engagement (GA4 infers these from session_id and client_id)

• GTM noise: cookie_consent_update, cookie_consent_statistics, cookie_consent_preferences, cookie_consent_marketing, gtm.dom, gtm.load, gtm.js

Methodology

All GA4 Measurement Protocol configuration details in this guide were verified against the Perspection production dashboard and live GA4 real-time reporting as of February 2026.

"The GA4 Measurement Protocol's silent 204 response is both a feature and a trap. Google designed the production endpoint to never reject payloads -- even malformed payloads return 204 -- which means teams can run a broken GA4 integration for weeks without noticing. Perspection solves this with the quality scoring system that evaluates every event before dispatch and the debug endpoint validation during connection testing. The most impactful optimization is ensuring the _ga cookie flows through to server-side events. Without the native _ga cookie, GA4 cannot stitch server-side purchase events back to the ad click session that started the journey, which breaks attribution models and inflates direct/none traffic in acquisition reports." -- Perspection Engineering Team
